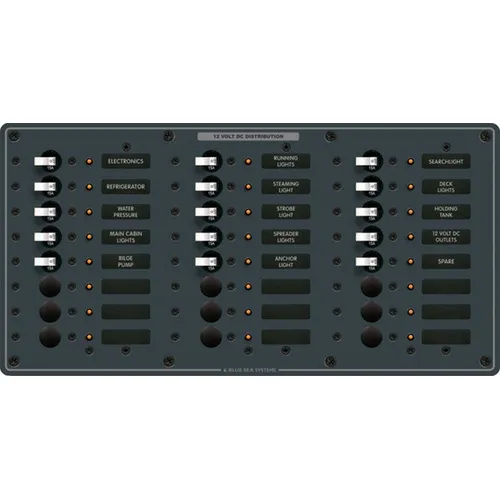

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

  Specifications:
  Positions: 24
  Nominal Voltage: 12V DC 24V DC
  Maximum Amperage: 100A per bus
  Height: 7.50in (190.5 mm)
  Width: 14.75in (374.65 mm)
  Weight: 7.45lb (3.38 kg)
